The product series includes multiple receiver models that can meet various usage needs

The design and manufacturing of the receiver ensure its use in extremely harsh environments. After testing, it can operate normally in environments of vibration, vibration, and electromagnetic interference. The shell also has dust, moisture, and waterproof functions.

The receiver software can repeatedly set parameters to provide sufficient convenience for meeting the requirements of end customers.

The number of output signals from the receiver is determined by the transmitter.

Product Features

→  Reliable performance and easy to master

→  Flexible selection methods

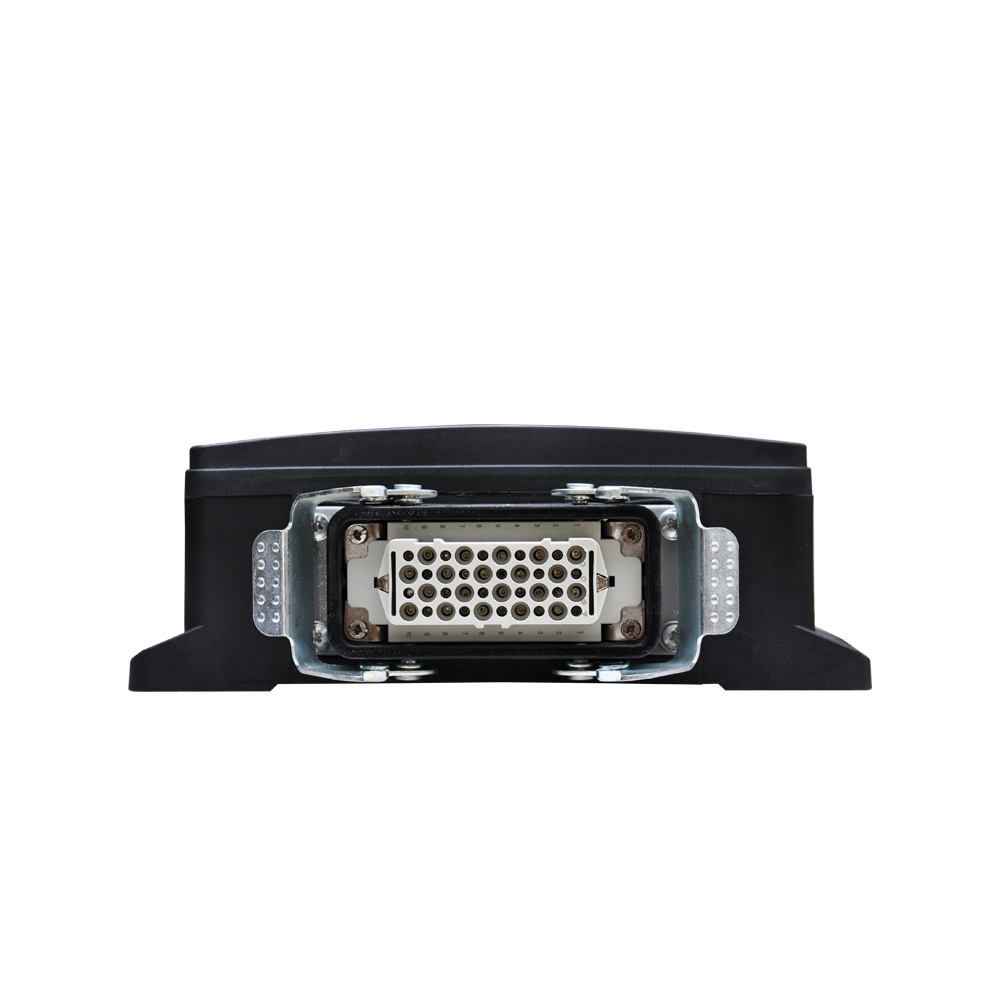

→  Terminal connection, standard cable harness

→  Efficient processor with multiple program functions

→  Easy to maintain design

→  Advanced self-diagnosis technology and error logging function

→  According to different national laws and regulations or customer requirements,

→  Set up different frequency series parallel operation, multi control one, one

→  Control multiple, multi control multi operation lock release function

→  The receiver can be expanded or customized according to customer requirements

Ideal choice of remote control system and high adaptability solutions

CTR series receiver is the most advanced and functional intelligent wireless command receiver. It is a multifunctional receiver with proportional output, switching input/output, and CAN-open communication. Receiver has many interface options and flexible software settings, which is suitable for various electrical instructions wireless remote control function applications.

The built-in proportional output signal can control the current-type and voltage-type hydraulic valve.

If the functions are more than one receiver's space, the number of outputs can be increased by adding the receiver, and using the master/slave settings.

CTR series always puts safety in the first place. The stop function and the two safety relays of the receiver are in line with SIL3 IEC 61508 and Ple safety standards.

CTR receiver's built-in controller has many functions to improve the characteristics of the cranes and mechanical equipments. At the same time, the controller also reduces the need for external electronic components, such as PLC, relay, diode, etc.

CTR-B1 series receivers are elaborately designed with many different versions. The choice of different versions depends on your requirements and the interface of the machine.

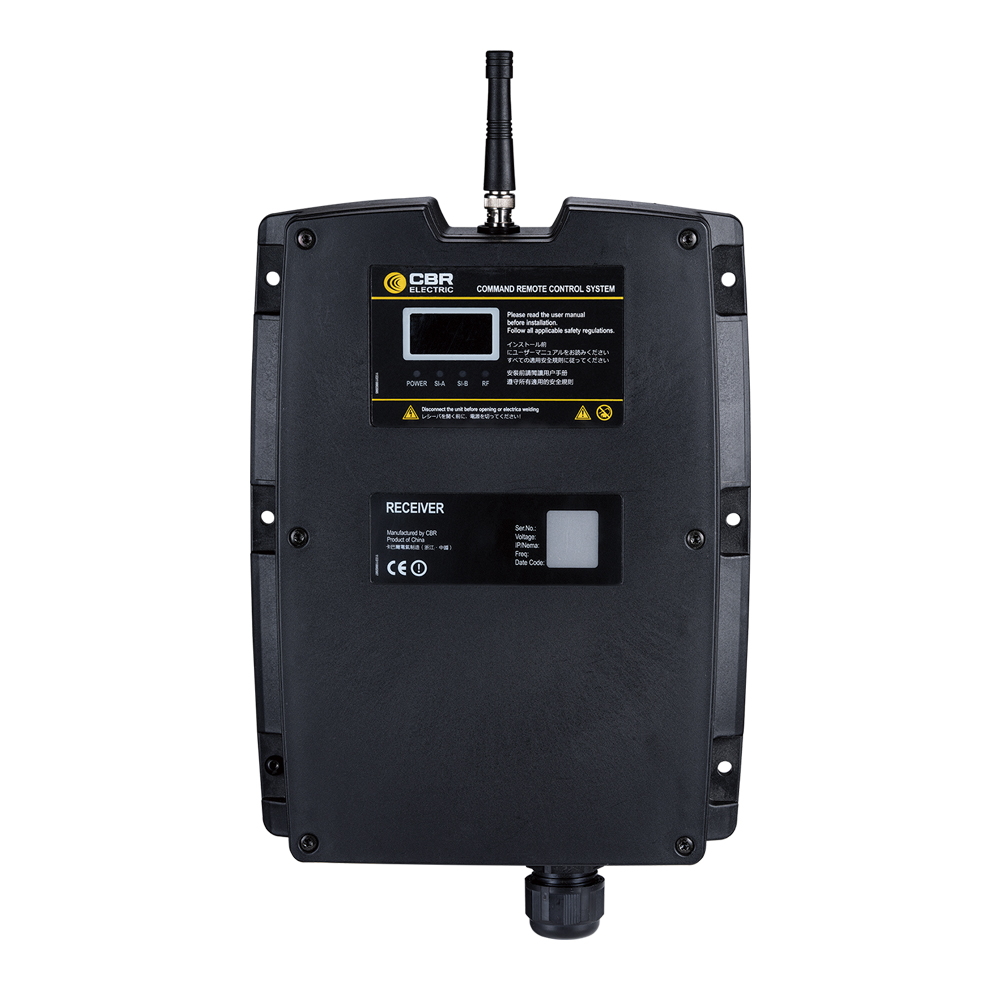

The receiver is equipped with a 1.5-inch OLED display that provides detailed information about the operation status and possible error codes. The receiver has an error log that records both internal system errors and external errors from devices and controllers connected to the system.

Each receiver can only be started by its own transmitter, and no other transmitter or product can unintentionally start this receiver. For maximum security, the receiver is equipped with dual processors that continuously monitor all data and output devices. In the event of any error or disconnection from the transmitter, all outputs will immediately turned off.
